Tủ tiếp địa - DCT1-GI

Application

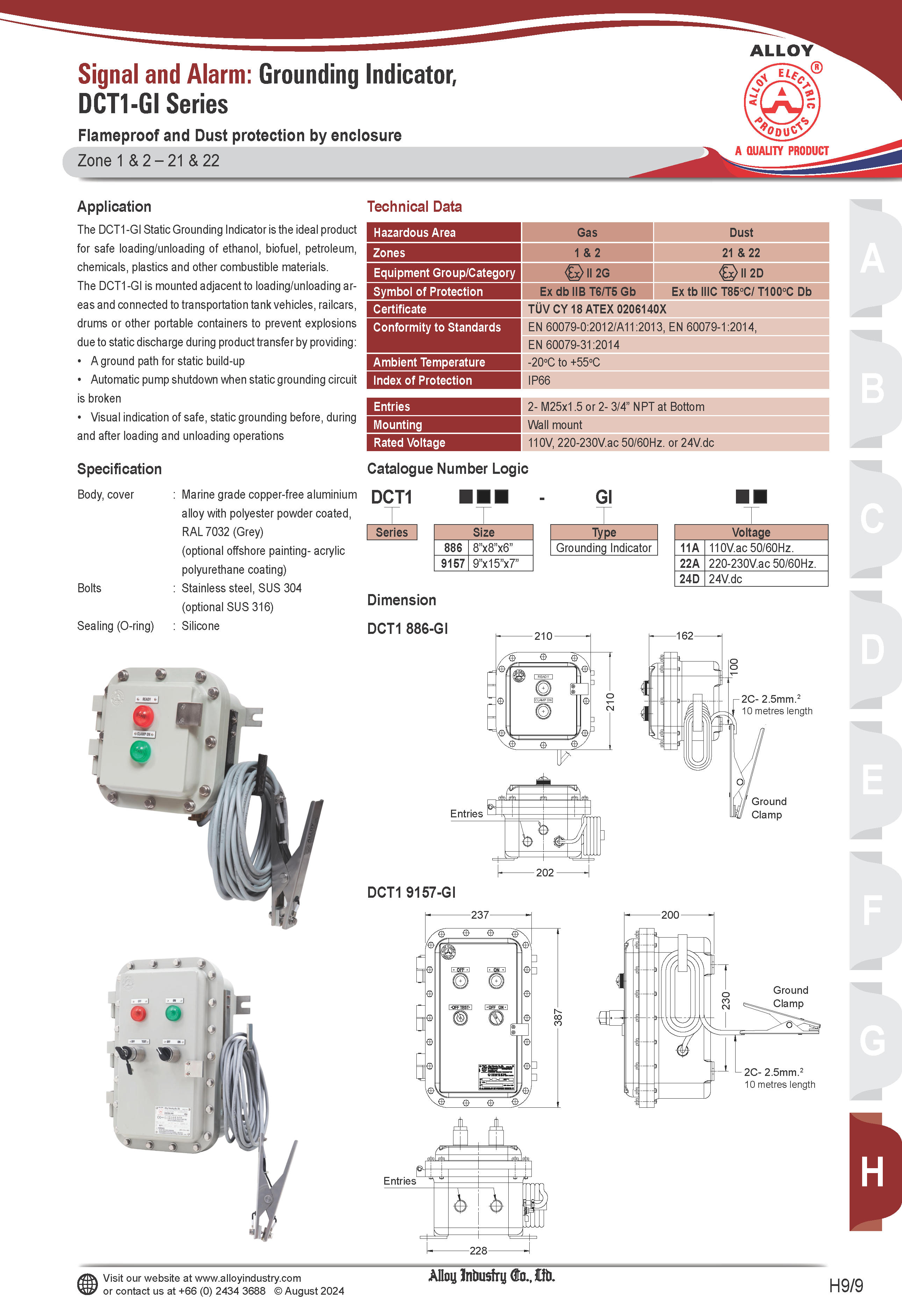

The DCT1-GI Static Grounding Indicator is the ideal product for safe loading/unloading of ethanol, biofuel, petroleum, chemicals, plastics and other combustible materials. The DCT1-GI is mounted adjacent to loading/unloading areas and connected to transportation tank vehicles, railcars, drums or other portable containers to prevent explosions due to static discharge during product transfer by providing:

• A ground path for static build-up
• Automatic pump shutdown when static grounding circuit is broken
• Visual indication of safe, static grounding before, during and after loading and unloading operations

Specification

• Body material : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (grey)
• Lid screws : Stainless steel
• Sealing gasket : Silicone

Technical data

Zone area of used: Zone 1, 2, 21, 22

Ex db IIB T6/T5 Gb| Ex tb IIIC T85ºC/T100ºC Db IP66
