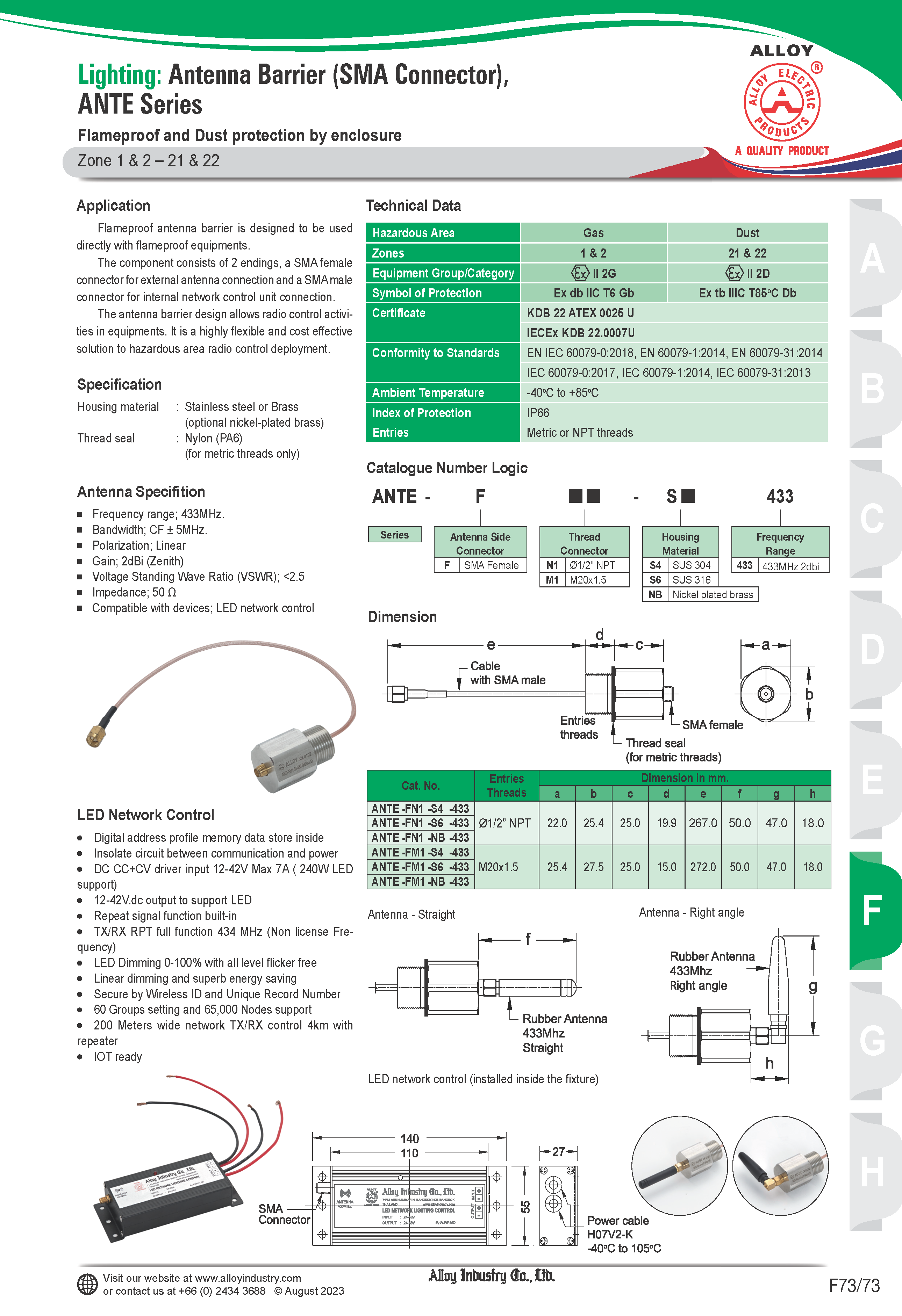

Antenna Barrier - ANTE
Liên Hệ Giá Tốt
Application
- Flameproof antenna barrier is designed to be used directly with flameproof equipments.
- The component consists of 2 endings, a SMA female connector for external antenna connection and a SMA male connector for internal network control unit connection.
- The antenna barrier design allows radio control activities in equipments. It is a highly flexible and cost effective solution to hazardous area radio control deployment.
Specification
- Housing material : Stainless steel or Brass
- Thread seal : Nylon PA6 (For metric threads only)
Technical data
Zone area of used: Zone 1, 2, 21, 22
Ex db IIC T6 | Ex tb IIIC Db IP66
