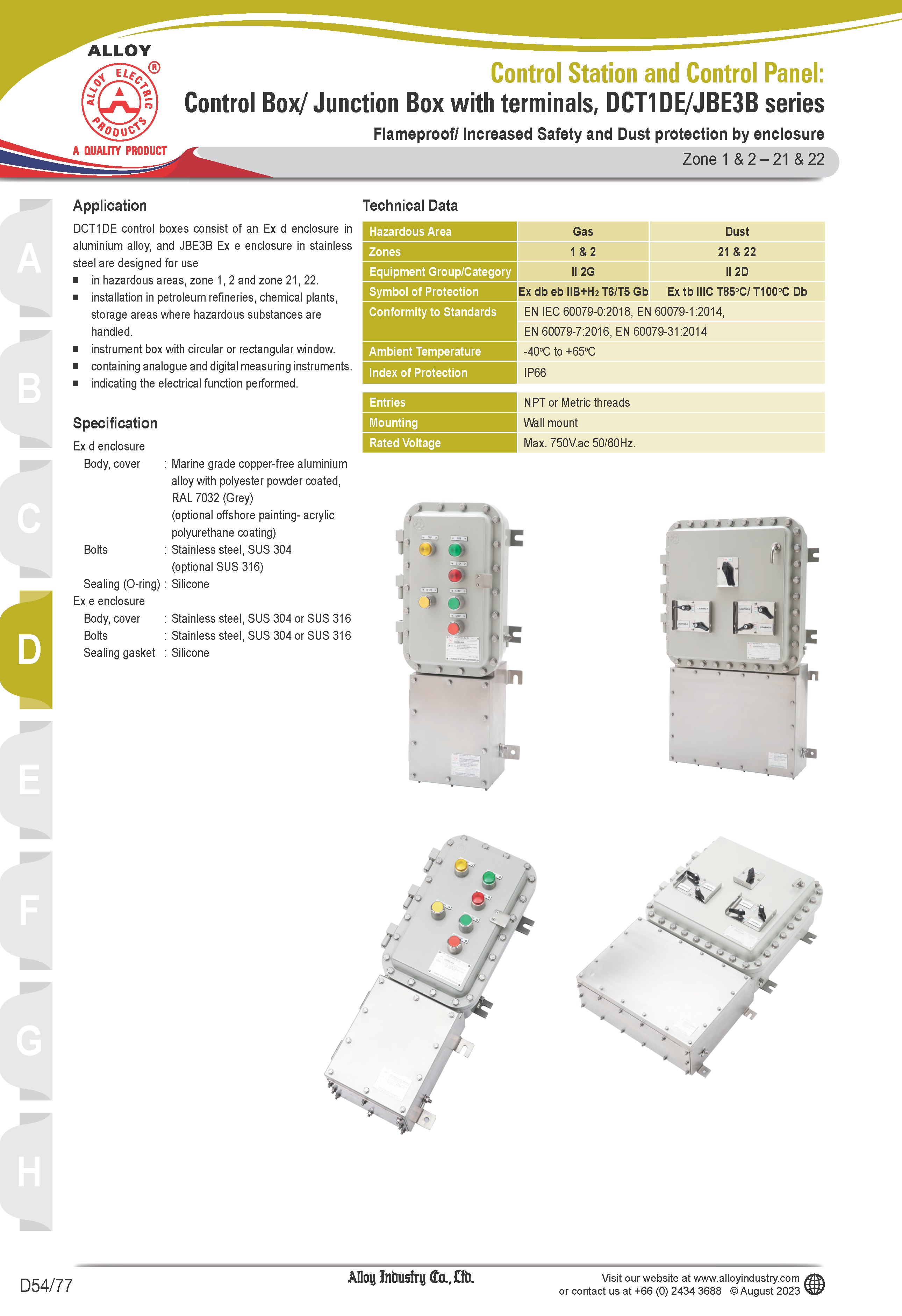

Control panel/Junction box - DCT1DE/JBE3B
Liên Hệ Giá Tốt
Application
DCT1DE control boxes consist of an Ex d enclosure in aluminium alloy, and JBE3B Ex e enclosure in stainless steel are designed for use
- in hazardous areas, zone 1, 2 and zone 21, 22.
- installation in petroleum refineries, chemical plants, storage areas where hazardous substances are handled.
- instrument box with circular or rectangular window.
- containing analogue and digital measuring instruments.
- indicating the electrical function performed.
Specification
Ex d enclosure:
- Body, cover : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey)
Ex e enclosure:
- Body, cover : Stainless steel SUS 304 or SUS 316
- Lid screws : Stainless steel
- Sealing gasket : Silicone
Technical data
Zone area of used: Zone 1, 2, 21, 22
Ex db eb IIB+H2 T6/T5 Gb | Ex tb IIIC T85ºC/T100ºC Db IP66
