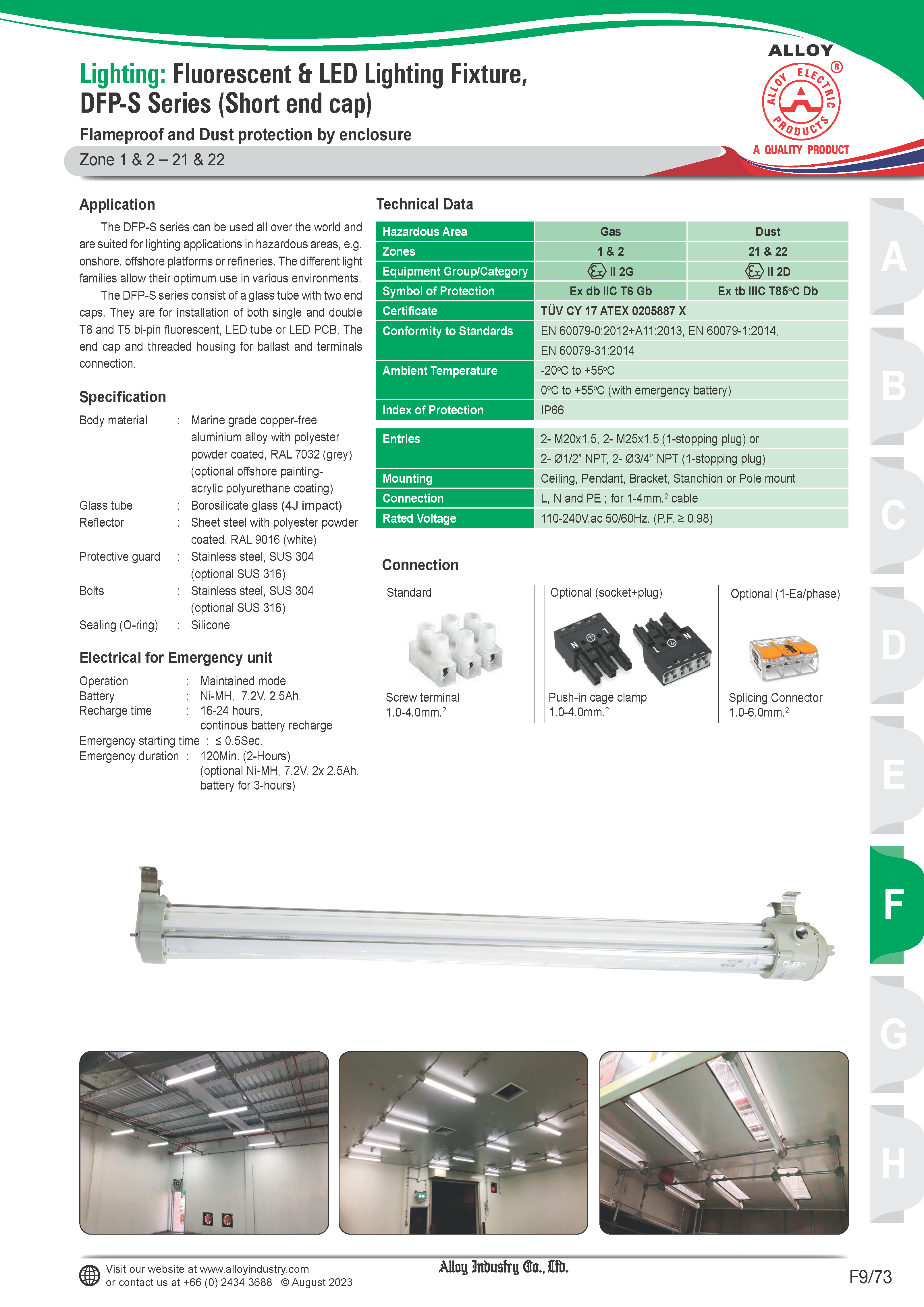

Đèn Tube - DFP-S

Application

The DFP-S series can be used all over the world and are suited for lighting applications in hazardous areas, e.g. onshore, offshore platforms or refineries. The different light families allow their optimum use in various environments.

The DFP-S series consist of a glass tube with two end caps. They are for installation of both single and double T8 and T5 bi-pin fluorescent, LED tube or LED PCB. The end cap and threaded housing for ballast and terminals connection.

Specification

• Body material : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (grey)
• Glass tube : Borosilicate glass (4J impact)
• Refector : Sheet steel with polyester powder coated, RAL 9016 (white)
• Protective guard : Stainless steel, SUS 304
• Sealing gasket : Silicone

Technical data

Zone area of used: Zone 1, 2, 21, 22

Ex db IIC T6 Gb  |  Ex tb IIIC T85ºC Db IP66
