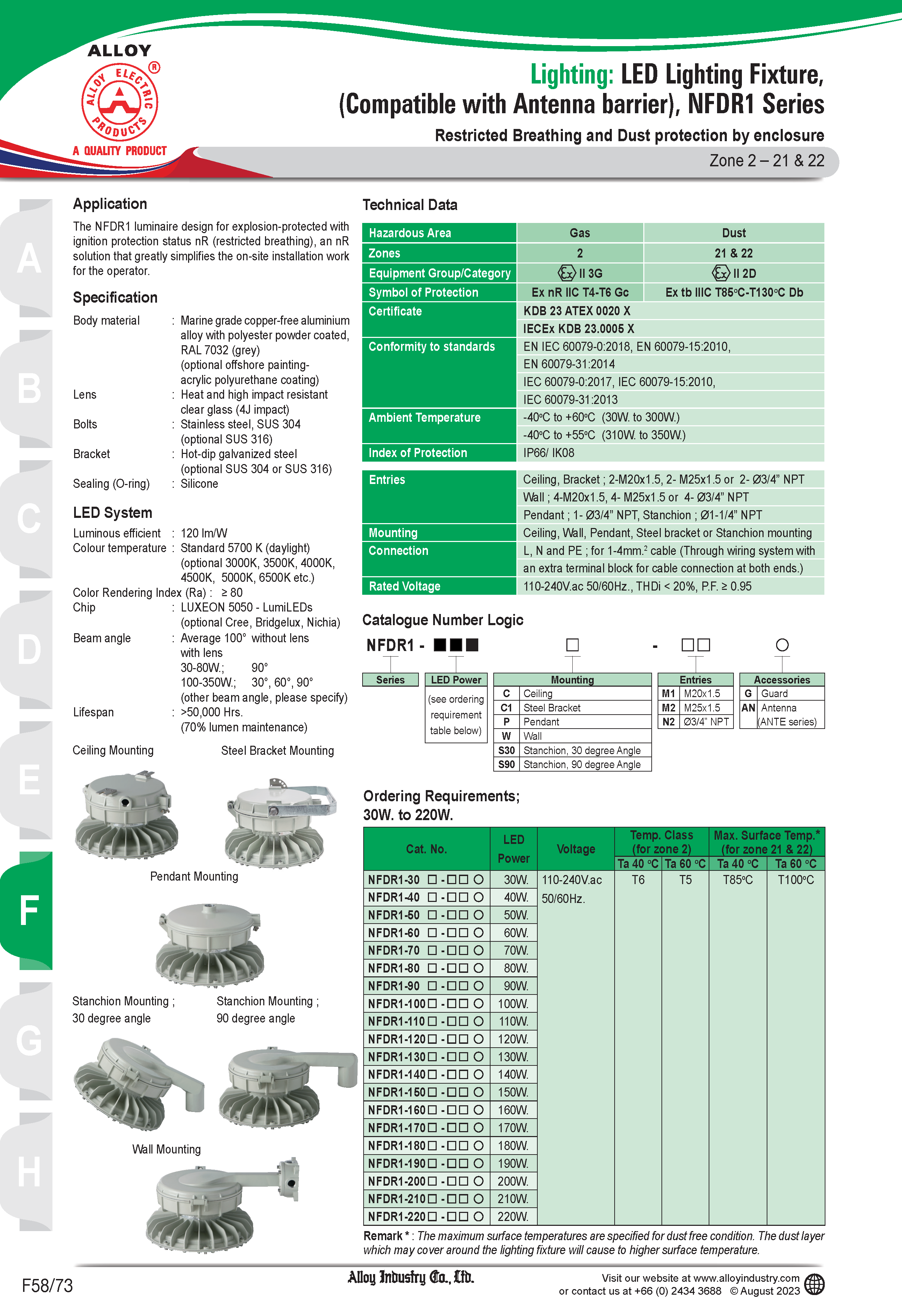

LED Lighting fixture - NFDR1

Liên Hệ Giá Tốt

Application

The NFDR1 luminaire design for explosion-protected with ignition protection status nR (restricted breathing), an nR solution that greatly simplifies the on-site installation work for the operator.

Specification
  • Body material   : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (grey)
  • Lens                 : Heat and impact resistant clear glass
  • Bolts                 : Stainless steel
  • Sealing gasket : Silicone
  • Bracket : Hot-dip gavanized steel
  • Guard : Stainless steel
Technical data
Zone area of used: Zone 2, 21, 22
Ex nR IIC T6/T5 Gc  |  Ex tb IIIC T85ºC-T130ºC Db IP66
