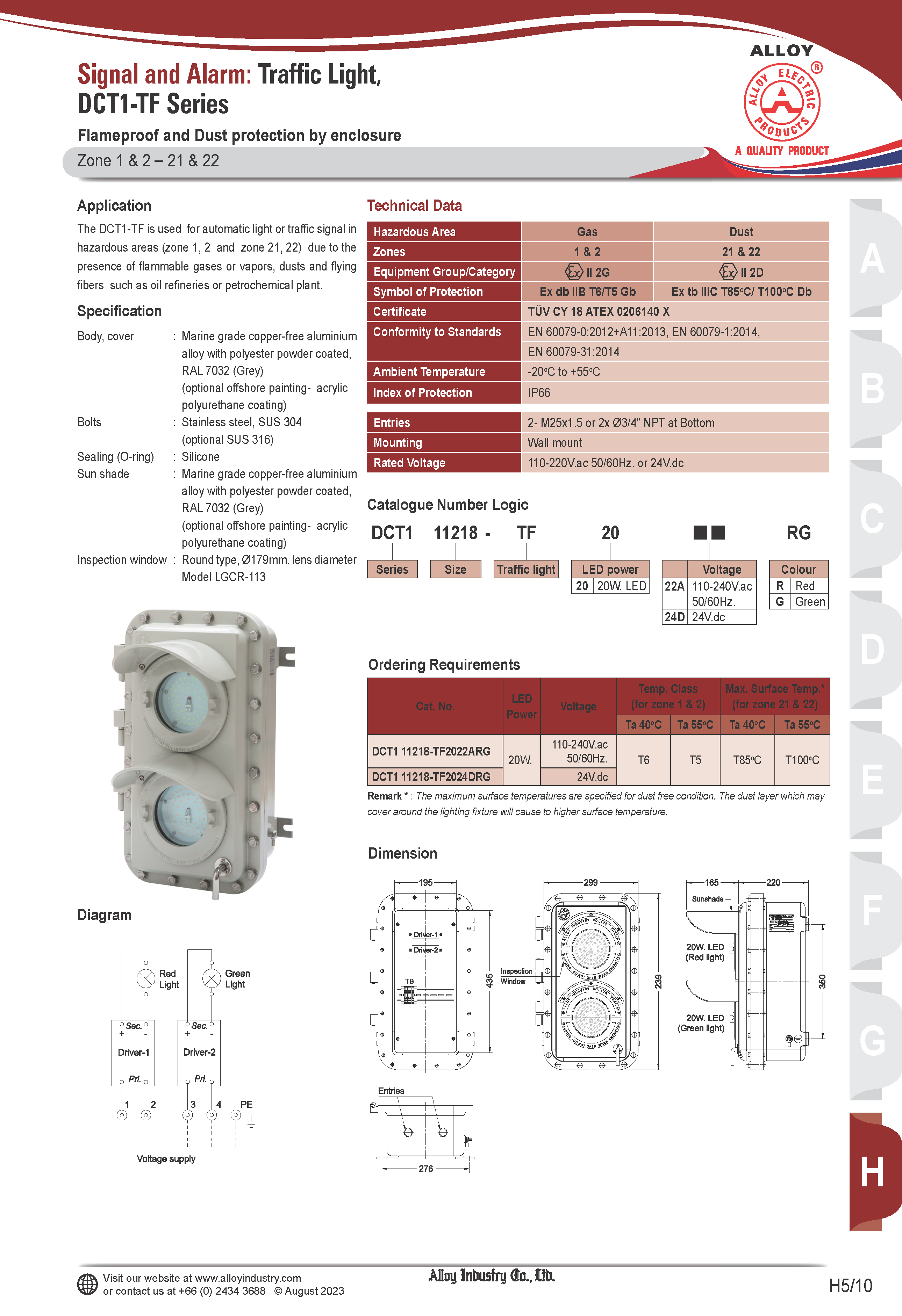

Traffic light - DCT1-TF
Liên Hệ Giá Tốt
Application
The DCT1-TF is used for automatic light or traffic signal in hazardous areas (zone 1, 2 and zone 21, 22) due to the presence of flammable gases or vapors, dusts and flying fibers such as oil refineries or petrochemical plant.
Specification
- Body, cover : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey)
- Lid screws : Stainless steel, SUS 304
- Sealing gasket : Silicone
- Sun shade : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey)
- Inspection window : Round type, Ø179mm. lens diameter
Technical data
Zone area of used: Zone 1, 2, 21, 22
Ex db IIB T6/T5 Gb | Ex tb IIIC T85ºC/T100ºC Db IP66
