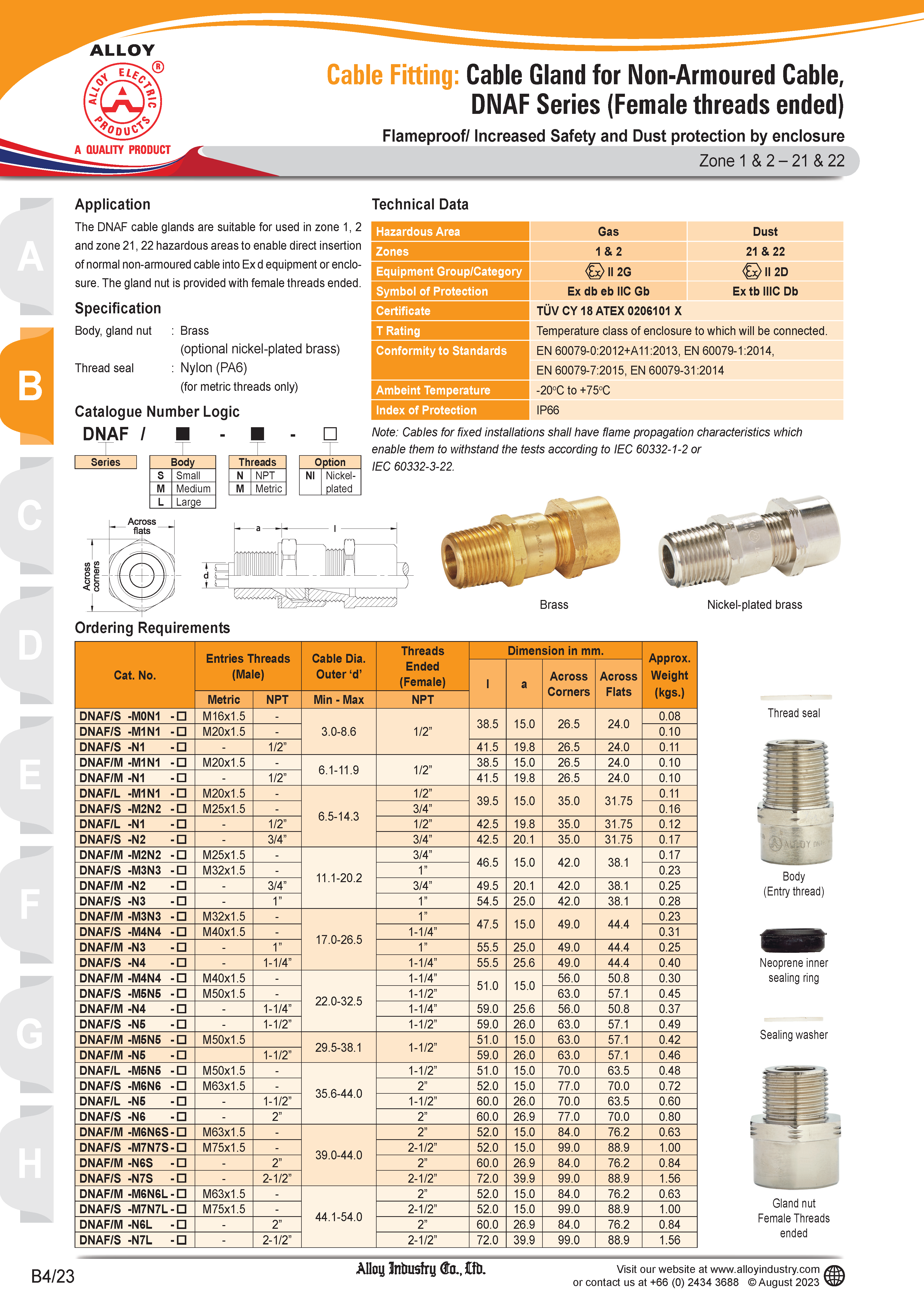

Cable Gland for Non-Armoured - DNAF
Liên Hệ Giá Tốt
Application
The DNAF cable glands are suitable for used in zone 1, 2 and zone 21, 22 hazardous areas to enable direct insertion of normal non-armoured cable into Ex d equipment or enclosure. The gland nut is provided with female threads ended.
Specification
- Body, gland nut : Brass (Nickel-plated brass as option)
- Thread seal : Nylon PA6 (For metric threads only)
Technical Data
Zone area of used: Zone 1, 2, 21, 22
Ex db eb IIC Gb | Ex tb IIIC Db IP66
