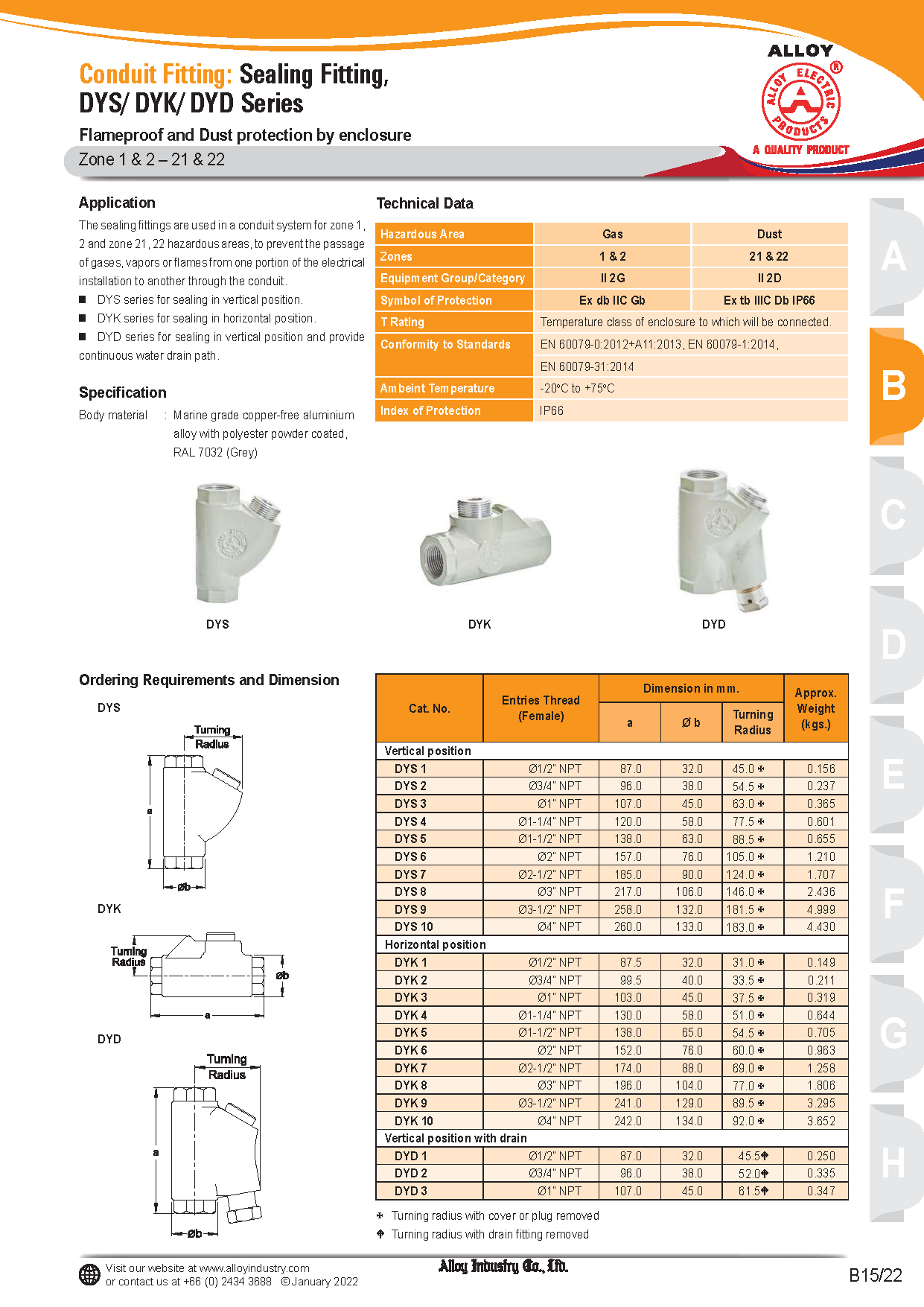

Sealing Fitting - DYS, DYK & DYD

Application

The sealing fittings are used in a conduit system for zone 1, 2 and zone 21, 22 hazardous areas, to prevent the passage of gases, vapors or flames from one portion of the electrical installation to another through the conduit.

• DYS series for sealing in vertical position.
• DYK series for sealing in horizontal position.
• DYD series for sealing in vertical position and provide continuous water drain path.

Specification

• Body, cover : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey)

Technical Data

Zone area of used: Zone 1, 2, 21, 22

Ex db IIC Gb   |    Ex tb IIIC Db IP66
