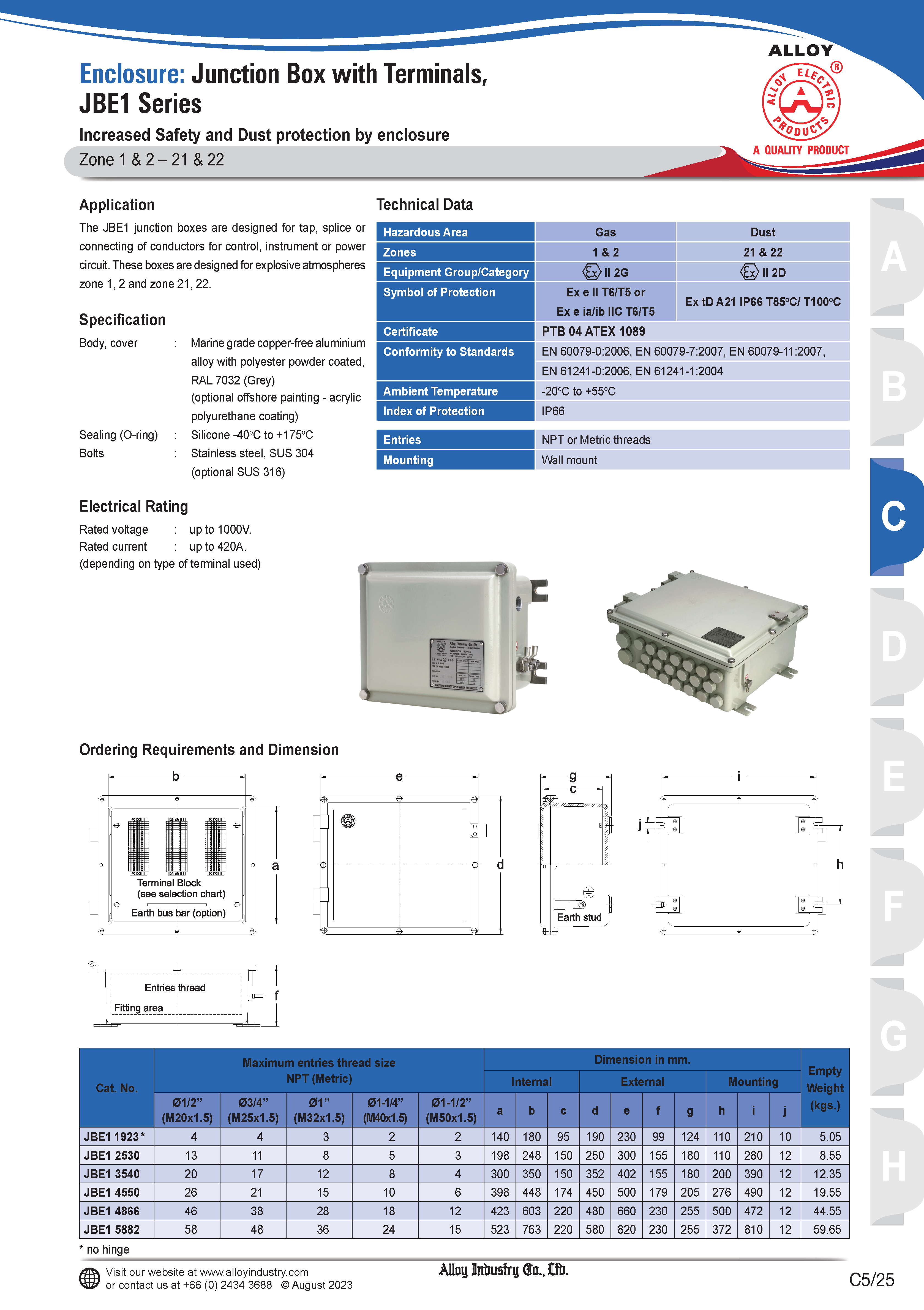

Junction Box Aluminium - JBE1
Liên Hệ Giá Tốt
Application
The JBE1 junction boxes are designed for tap, splice or connecting of conductors for control, instrument or power circuit. These boxes are designed for explosive atmospheres zone 1, 2 and zone 21, 22.
Specification
- Housing material : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (grey)
- Sealing (O-ring) : Silicone -40 ºC to +175 ºC
- Lid screws : Stainless steel
Technical Data
Zone area of used: Zone 1, 2, 21, 22
Ex e ia/ib IIC T6/T5 | Ex tD A21 T85ºC/ T100ºC IP66
