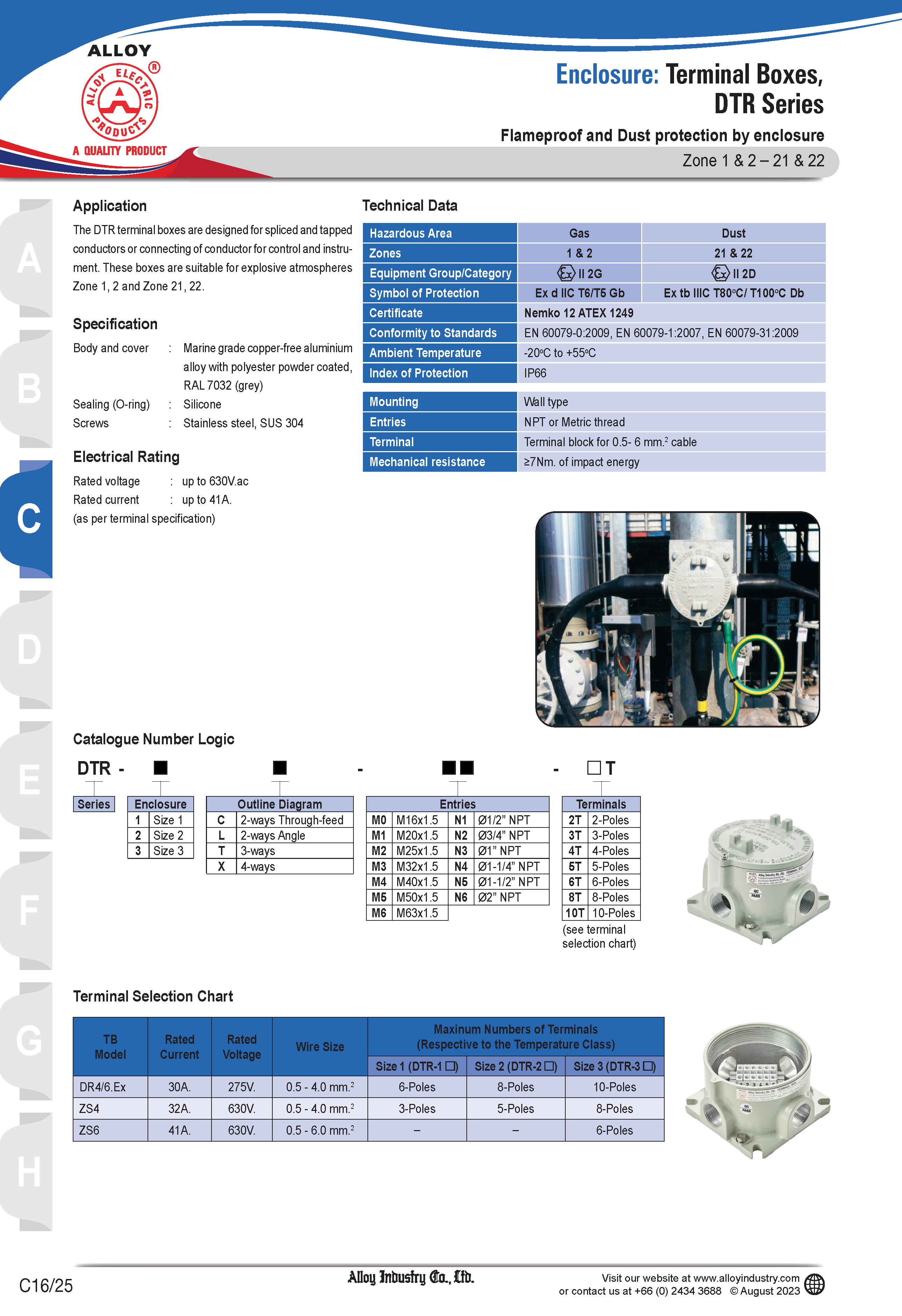

Terminal Box - DTR
Liên Hệ Giá Tốt
Application
The DTR terminal boxes are designed for taps, splices or connecting of conductor for control and instrument. These boxes are suitable for explosive atmospheres Zone 1, 2 and Zone 21, 22.
Specification
- Body, cover : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey)
- Sealing (O-ring) : Silicone
- Screws : Stainless steel
Technical Data
Zone area of used: Zone 1, 2, 21, 22
Ex d IIC T6/T5 Gb | Ex tb IIIC T80ºC/ T100ºC Db IP66
