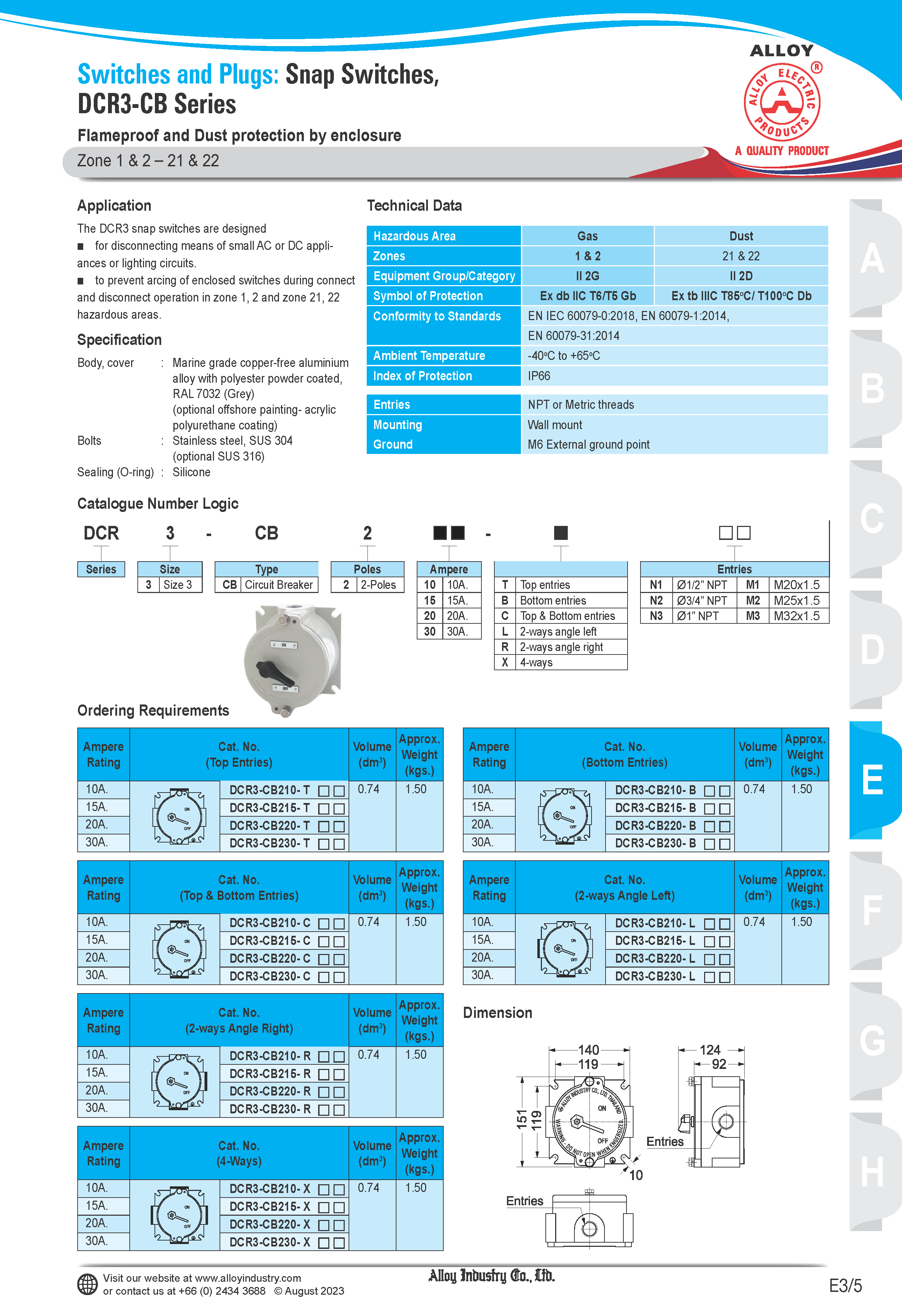

Snap switch - DCR3-CB
Liên Hệ Giá Tốt
Application
The DCR3 snap switches are designed
- for disconnecting means of small AC or DC appliances or lighting circuits.
- to prevent arcing of enclosed switches during connect and disconnect operation in zone 1, 2 and zone 21, 22 hazardous areas.
Specification
- Body material : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (grey)
- Lid screws : Stainless steel
- Sealing gasket : Silicone
Technical data
Zone area of used: Zone 1, 2, 21, 22
Ex db IIC T6/T5 Gb| Ex tb IIIC T85ºC/T100ºC Db IP66
