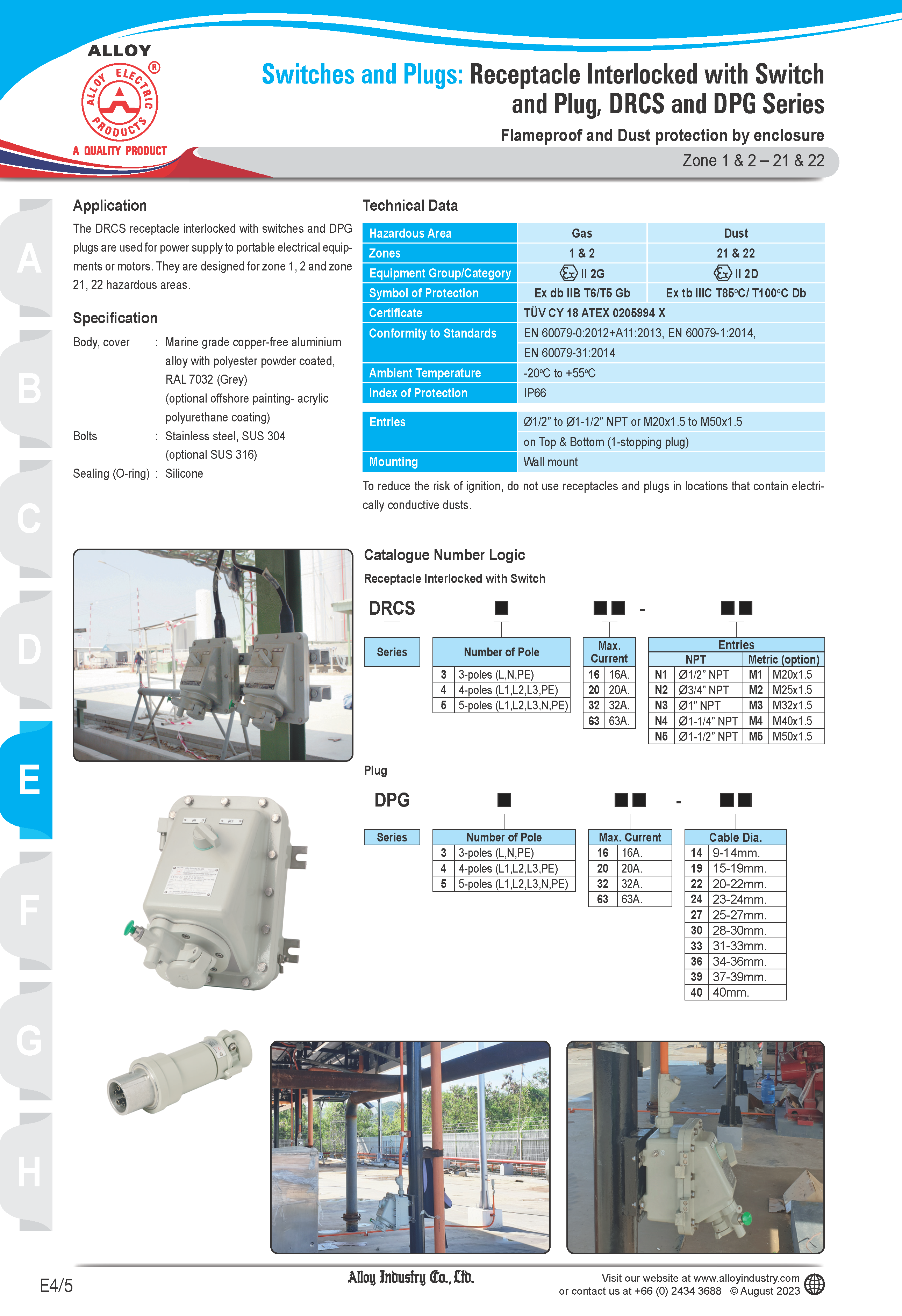

Socket and Plug - DRCS and DPG
Liên Hệ Giá Tốt
Application:
The DRCS receptacle interlocked with switches and DPG plugs are used for power supply to portable electrical equipments or motors. They are designed for zone 1, 2 and zone 21, 22 hazardous areas.
Specification:
- Body, cover : Marine grade copper-free aluminium alloy with polyester powder coated, RAL 7032 (Grey)
- Bolts : Stainless steel
Technical Data
Zone area of used: Zone 1, 2, 21, 22
Ex db IIB T6/T5 Gb | Ex tb IIIC T85ºC/ T100ºC Db IP66
